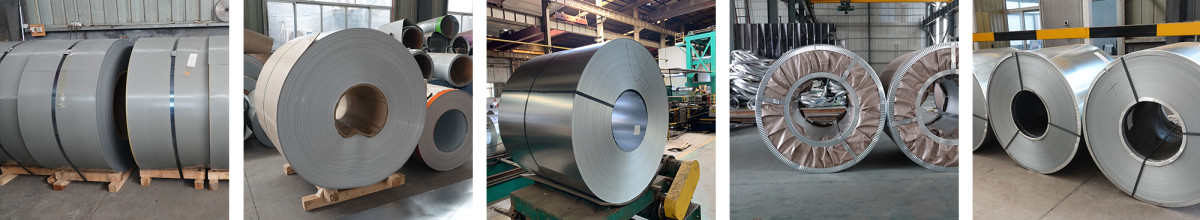

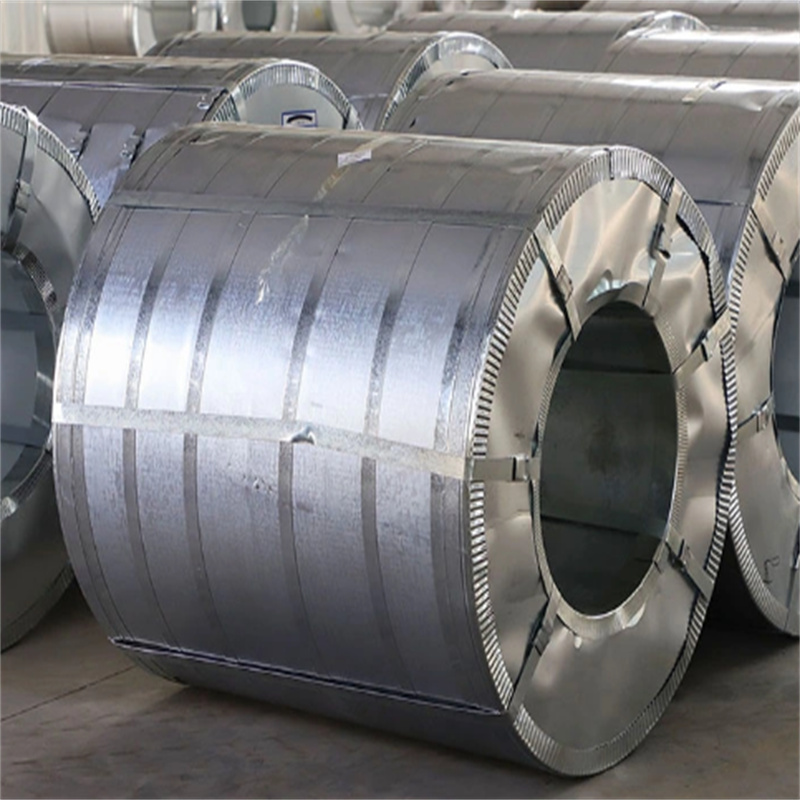

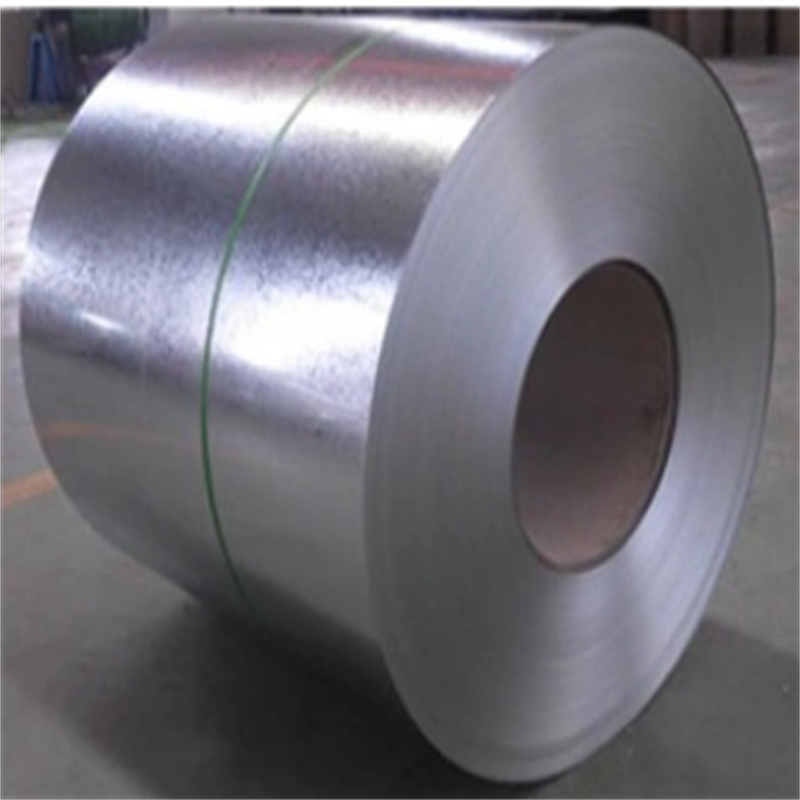

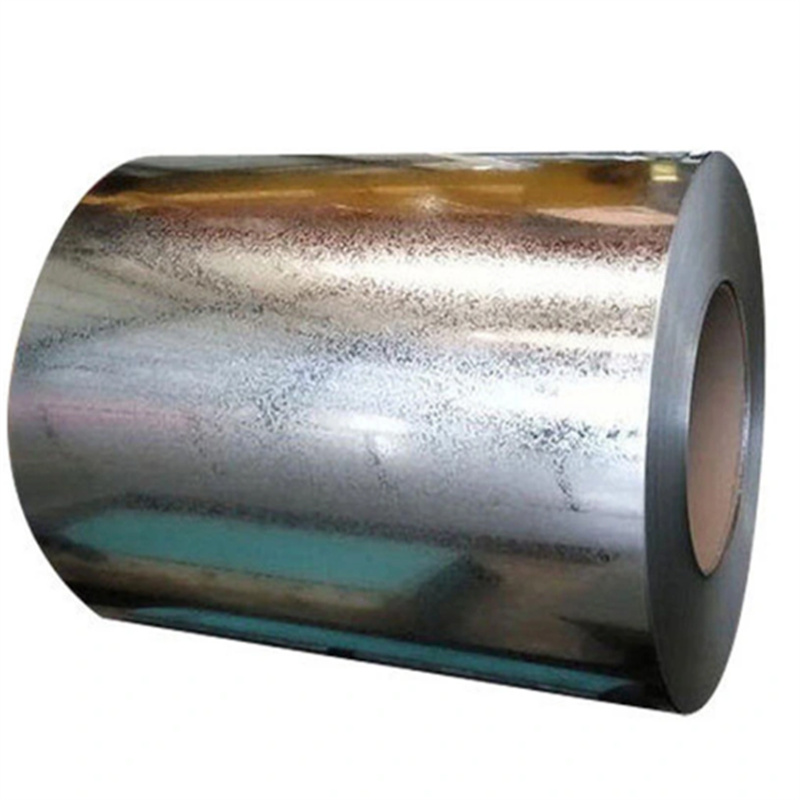

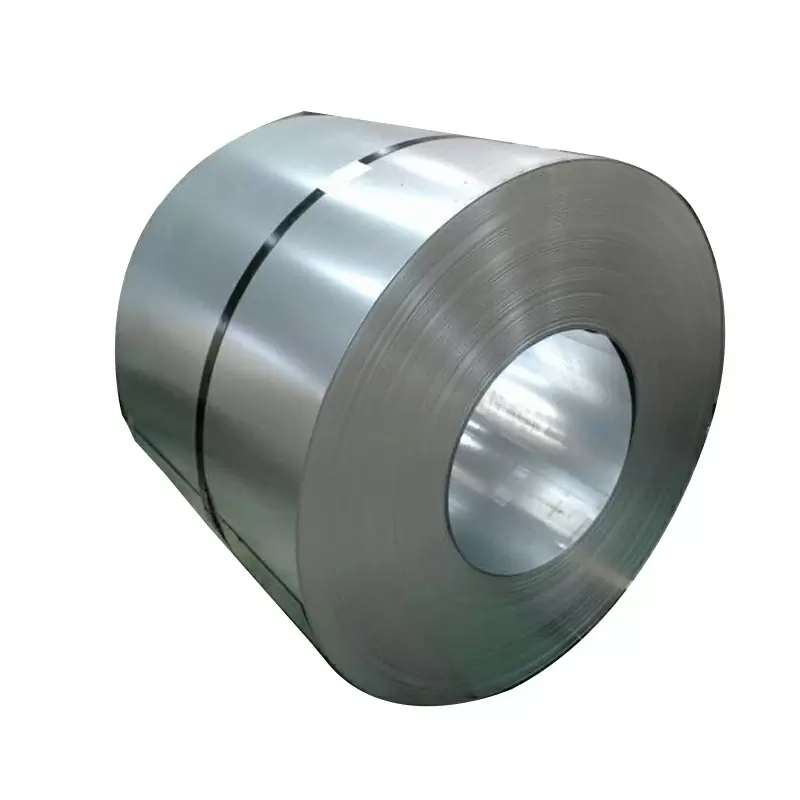

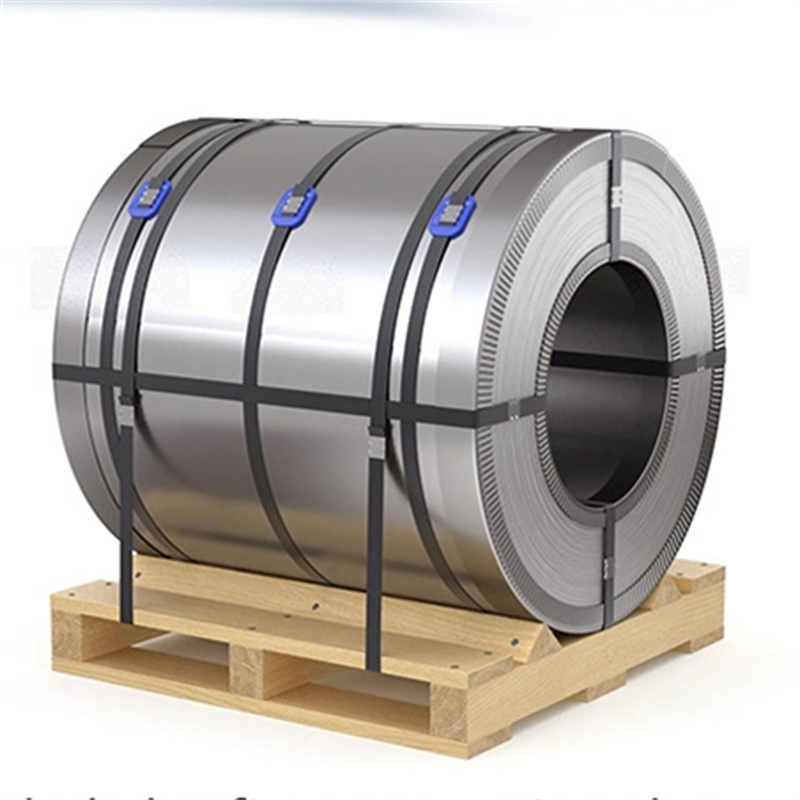

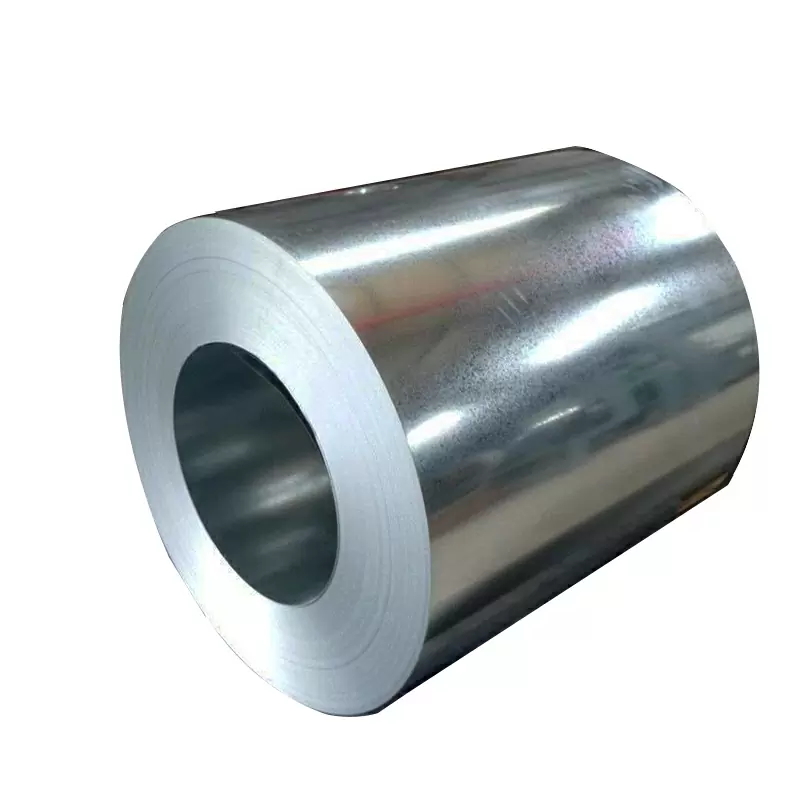

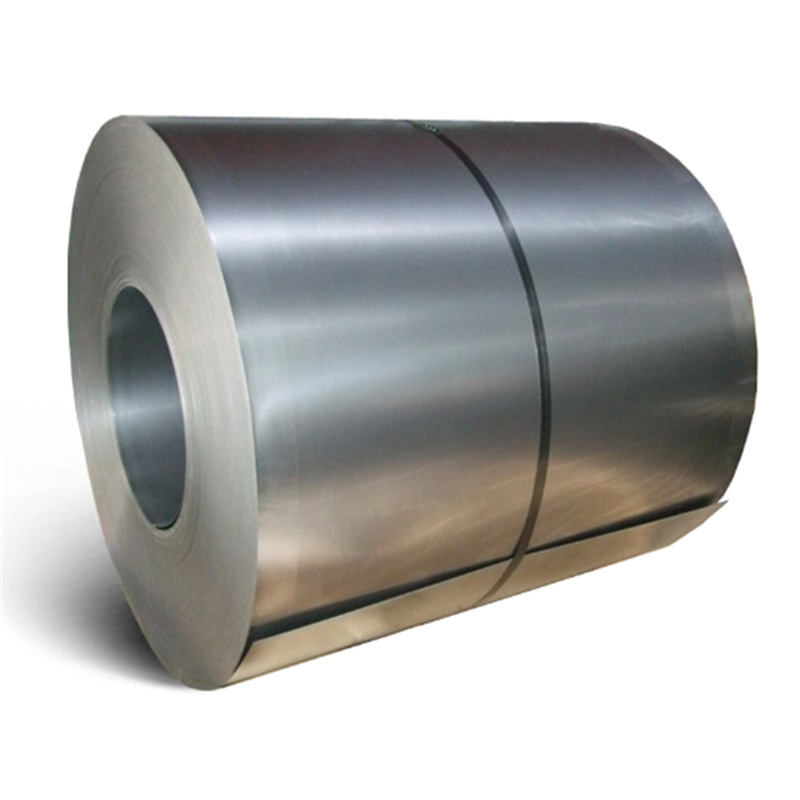

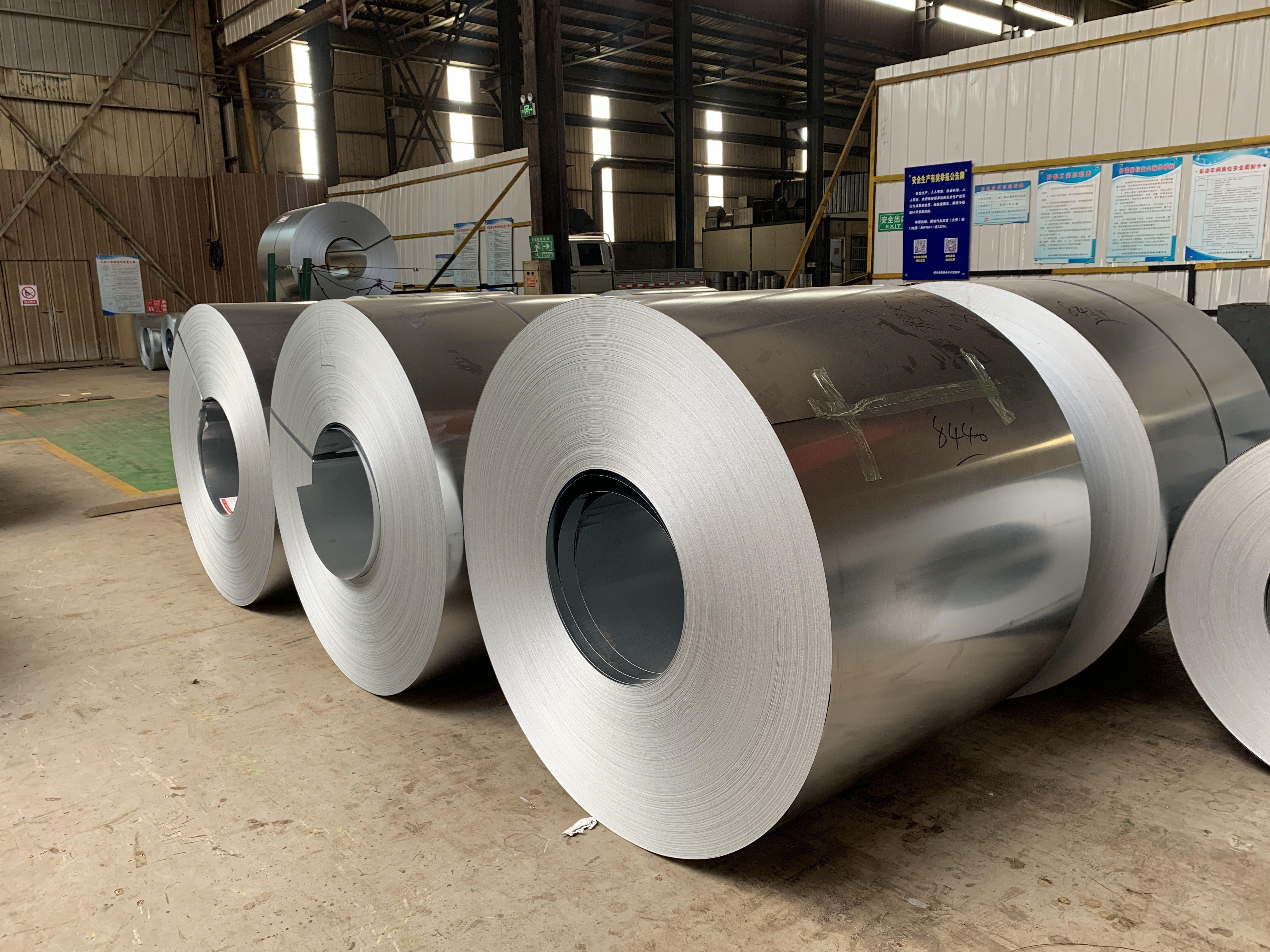

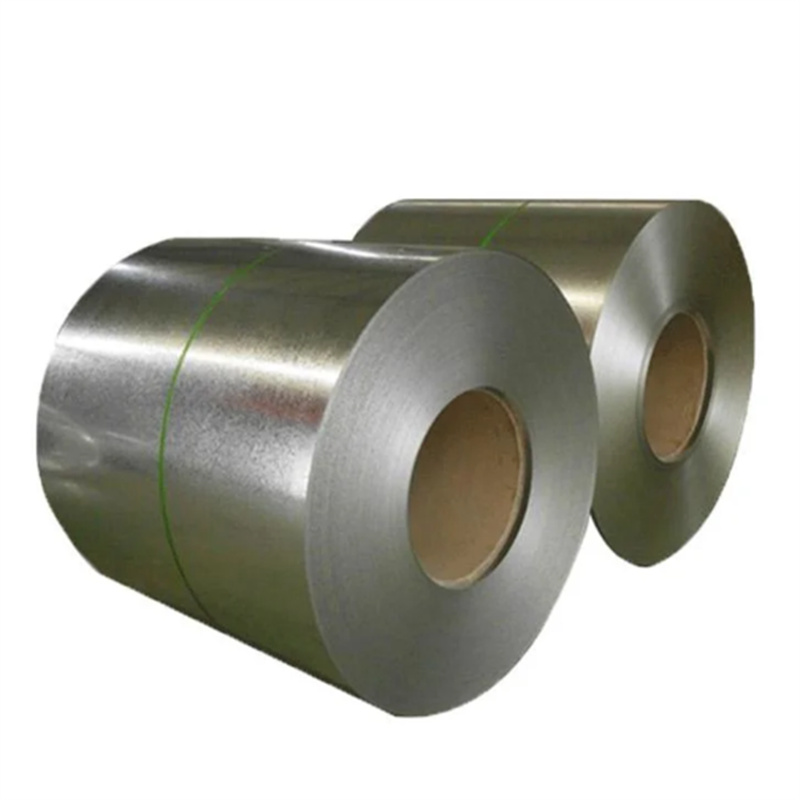

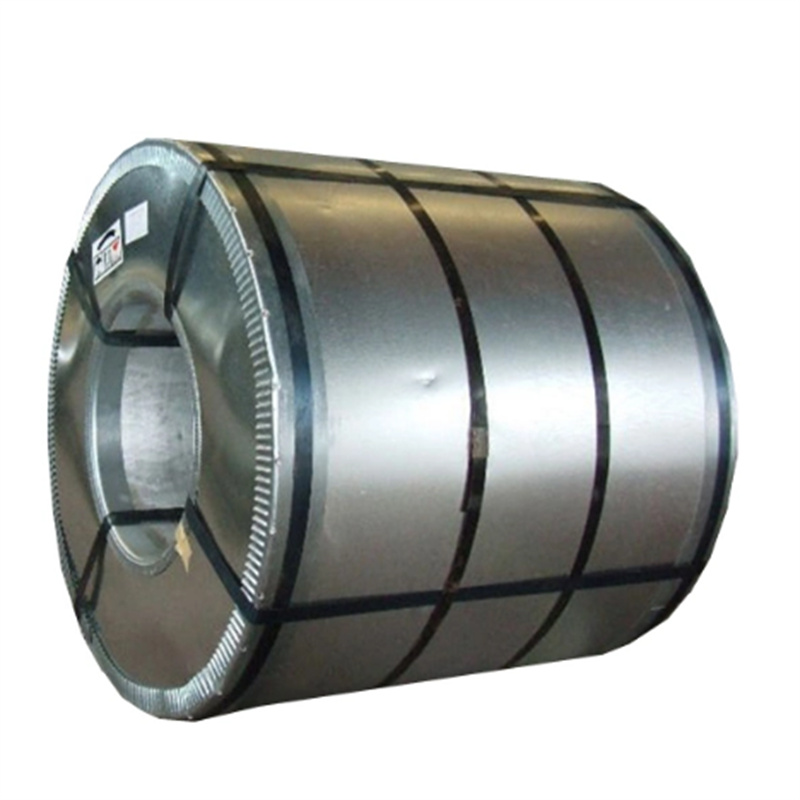

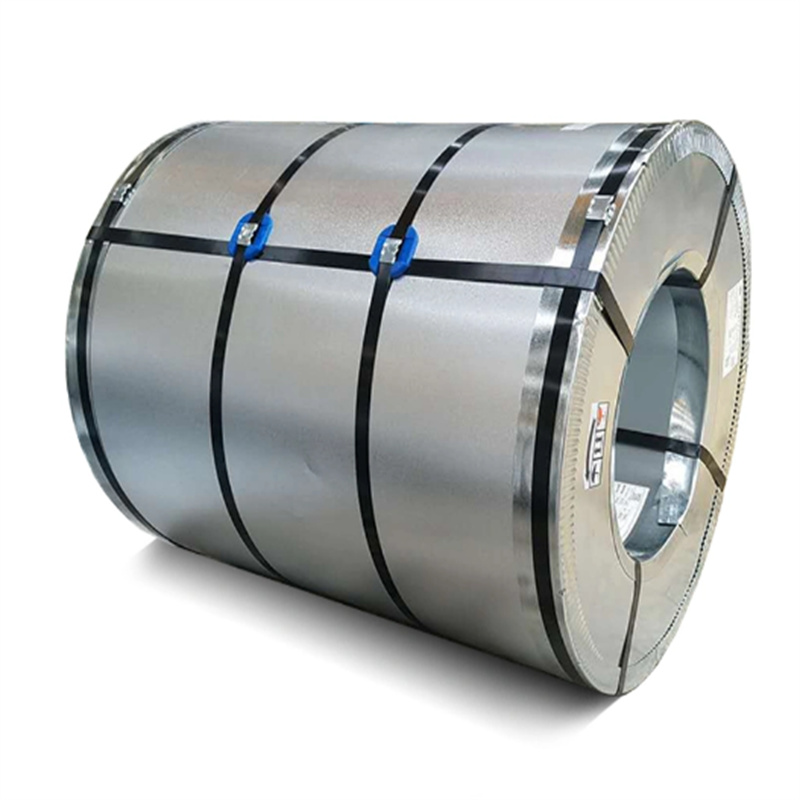

SGCD3 Galvanized Steel Coil

Galvanized coil, the thin steel sheet is immersed in a molten zinc tank to make a layer of zinc thin steel sheet adhered to its surface.
It is mainly produced by continuous galvanizing process, that is, the rolled steel sheet is continuously immersed in a plating tank with molten zinc to make a galvanized steel sheet; alloyed galvanized steel sheet. This steel sheet is also made by hot dip method, but after leaving the tank, it is immediately heated to about 500℃ to form an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weldability.

HYdoris@haoyunsteel.com

+86 13196415678

Galvanized coil, the thin steel sheet is immersed in a molten zinc tank to make a layer of zinc thin steel sheet adhered to its surface.

It is mainly produced by continuous galvanizing process, that is, the rolled steel sheet is continuously immersed in a plating tank with molten zinc to make a galvanized steel sheet; alloyed galvanized steel sheet. This steel sheet is also made by hot dip method, but after leaving the tank, it is immediately heated to about 500℃ to form an alloy film of zinc and iron. This galvanized coil has good coating adhesion and weldability.

Full cold galvanizing process:

Chemical degreasing → hot water washing → water washing → electrolytic degreasing → water washing → acid washing → rust removal → water washing → electrogalvanizing process → water washing → passivation → hot water washing → drying → quality inspection → packaging and sales

Product Parameters

Product Name	Galvanized Coil
Thickness	0.12mm-3.5mm
Width	600mm-1500mm
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Zinc Layer	40-400g/m²

Chemical Composition

Standard	Grade	C	Si	Mn	P	S	Ti
Forcold FormingChinese Standard	DX51D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX52D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX53D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX54D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX56D+Z	0.12	0.50	0.60	0.100	0.045	0.30
	DX57D+Z	0.12	0.50	0.60	0.100	0.045	0.30
Forcold FormingJapanese Standard	SGCC	0.15	0.50	0.80	0.050	0.030	0.025
	SGCD1SGCD2	0.120.10	0.500.50	0.600.45	0.0400.030	0.0300.030	0.0250.025
	SGCD3	0.08	0.50	0.45	0.030	0.030	0.025
	SGCD4	0.06	0.50	0.45	0.030	0.030	0.025
For StructureJapanese Standard	SGC340	0.25	0.50	1.70	0.200	0.035	0.025
	SGC400SGC440	0.250.25	0.500.50	1.702.00	0.2000.200	0.0350.035	0.1500.150
	SGC490	0.30	0.50	2.00	0.200	0.035	0.025
	SGC510	0.30	0.50	2.50	0.200	0.035	0.025
For StructureAISI Standard	S220GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S250GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S280GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S320GD+Z	0.20	0.60	0.70	0.100	0.045	0.025
	S350GD+Z	0.20	0.60	0.70	0.100	0.045	0.150
	S550GD+Z	0.20	0.60	0.70	0.100	0.045	0.150

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Use of The Environment	Recommended Zinc Thickness
Indoor Use	Z40 or Z120(40g/㎡or 120g/㎡)
Suburbs	Z200 and Painting (200g/㎡)
Urban or Industrial Area	Z275 (275g/㎡) or G90 (US Standard) and painted
Coastal Area	Thicker than Z275 (275g/㎡) or G90 (US Standard) and painted
Punch or Deep Drawing Application	Thicker than Z275 (275 grams/㎡) or G90 (US Standard) avoid coating peeling after stamping

Surface Treatment Type	Code	Features
Chromic Acid Treatment	C	Good corrosion resistance, suitable for bare state
Chromic Acid Treatment+Oiling	S	Good corrosion resistance
Phosphoric Acid Treatment (Including Sealing Treatment)	P	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling	Q	Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage
Phosphoric Acid Treatment (Excluding Sealing Treatment)	T	Have a certain corrosion resistance, good paint performance
Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling	V	Has a certain corrosion resistance, good paint performance, and prevent rust
Oiling	O	Prevent rust during transportation and storage
No Treatment	M	Suitable for immediate painting

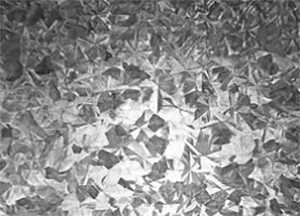

Galvanized Surface Selection

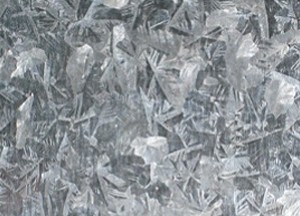

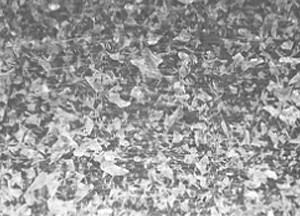

Zero Spangle	Minimized Spangle	Normal Spangle	Large Spangle

Material Comparison

Chinese Standard	Japan Standard	European Standard
DX51D Z/DC51D Z (CR)	SGCC	DX51D Z
DX52D Z/DC52D Z	SGCD1	DX52D With
DX53D Z/DC53D Z/DX54D Z/DC54D Z	SGCD2/SGCD3	DX53D Z/DX54D Z
S220/250/280/320/350/550GD Z	SGC340/400/440/490/570	S220/250/280/320/350GD Z
DX51D Z/DD51D Z (HR)	SGHC	DX51D Z

Service Advantage



Full range of products available

It covers seamless pipes, welded pipes, rebar, wire rod, hot-rolled/cold-rolled sheets, galvanized sheets, tinplate, structural steel, etc., meeting the procurement needs of multiple industries.



Full range of products available

It covers seamless pipes, welded pipes, rebar, wire rod, hot-rolled/cold-rolled sheets, galvanized sheets, tinplate, structural steel, etc., meeting the procurement needs of multiple industries.



Exporting countries and regions

Our products are exported to more than 20 countries and regions in Southeast Asia, the Middle East, Africa, and South America, and we have extensive experience in international exports.



Exporting countries and regions

Our products are exported to more than 20 countries and regions in Southeast Asia, the Middle East, Africa, and South America, and we have extensive experience in international exports.



Green and low-carbon manufacturing

Strict quality control, continuous optimization of emission reduction processes, and promotion of the circular economy development in the steel industry.



Green and low-carbon manufacturing

Strict quality control, continuous optimization of emission reduction processes, and promotion of the circular economy development in the steel industry.



Support product customization

Our experienced technical team and professional design department support customized customer needs. Factory visits are welcome.



Support product customization

Our experienced technical team and professional design department support customized customer needs. Factory visits are welcome.

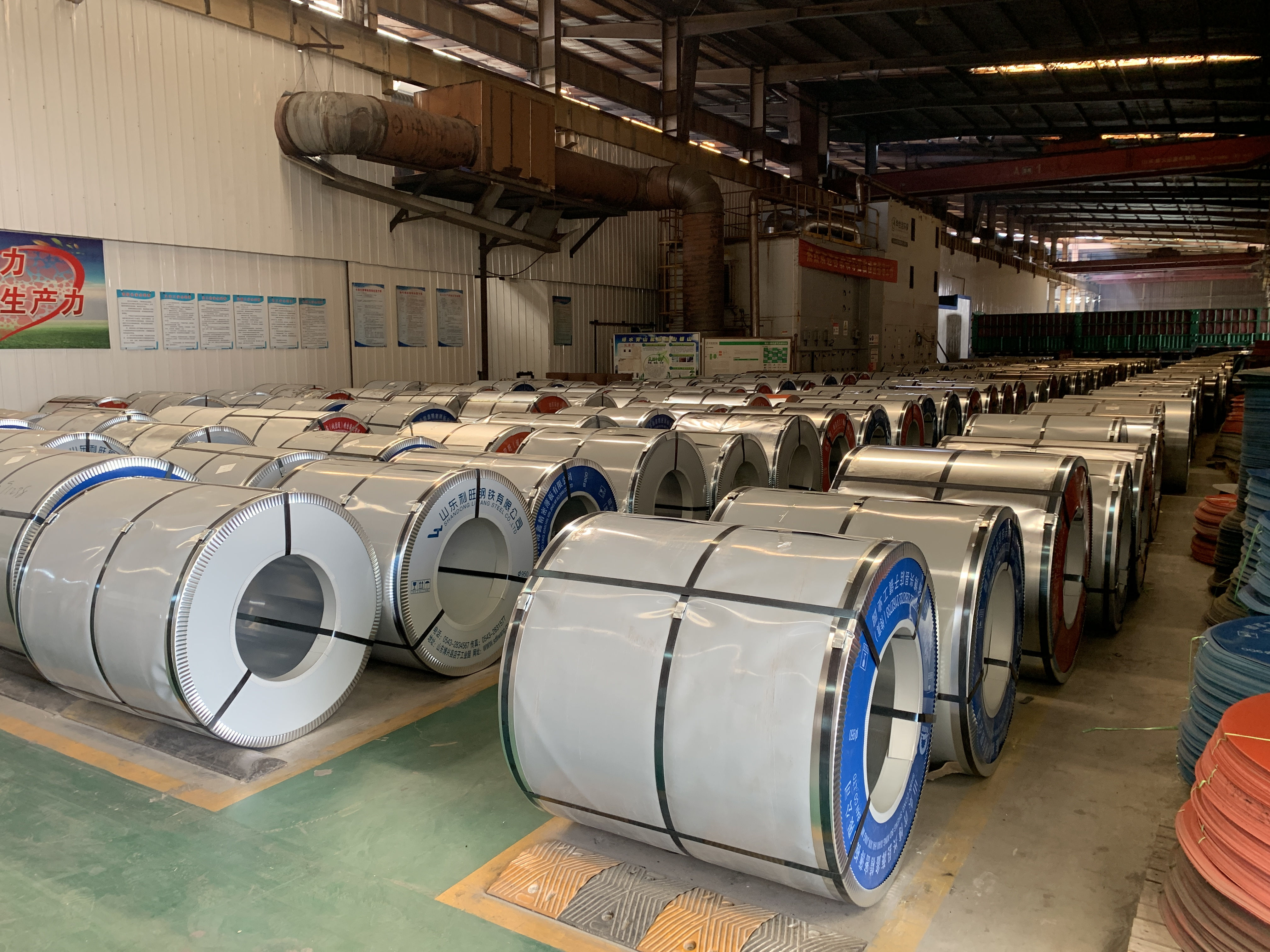

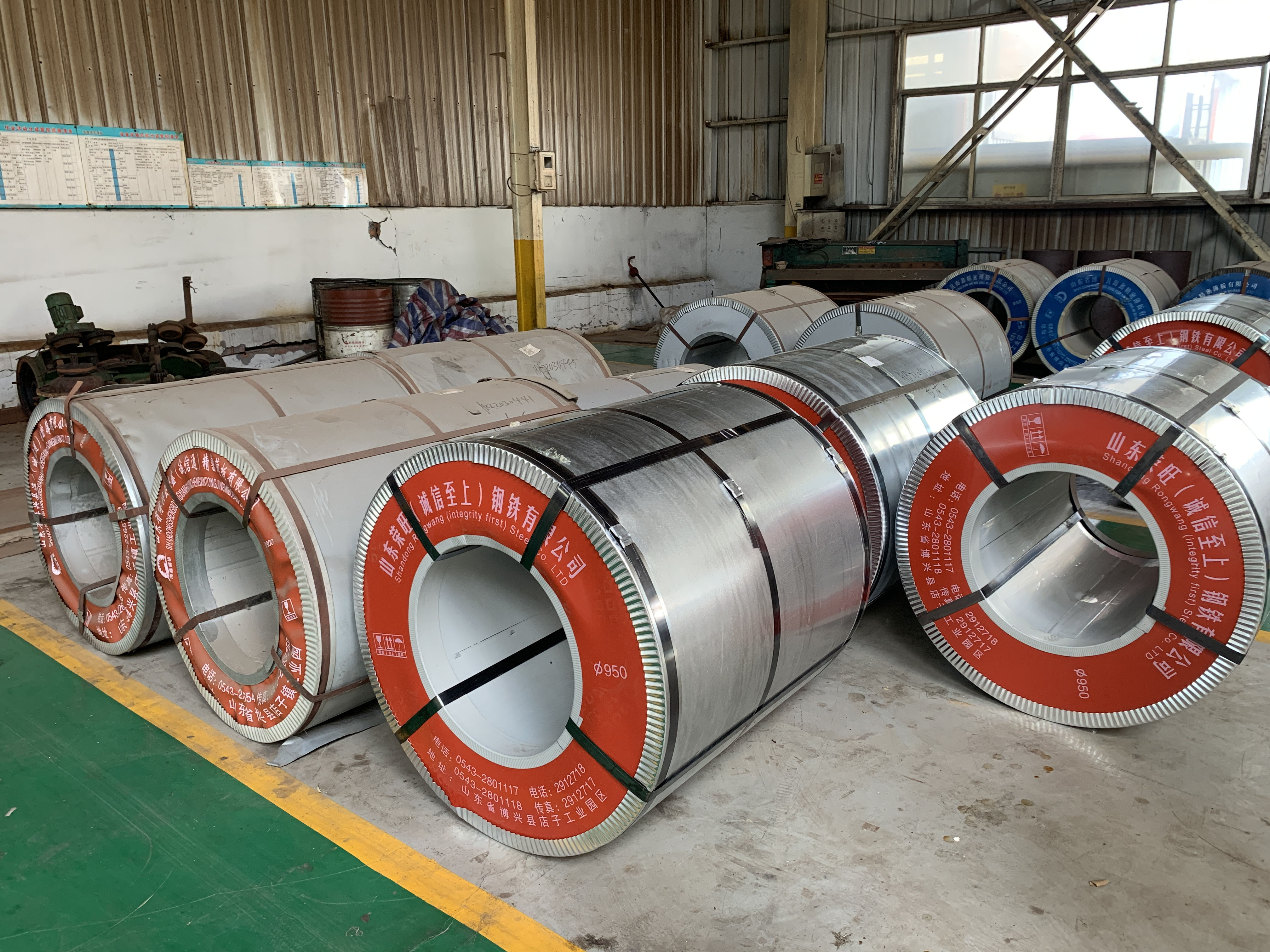

Factory Showcase
